ALPHA-MINI-PPS Portable Vacuum Pump Station

ALPHA-MINI-PPS Portable Vacuum Pump with Power SupplyThe ALPHA-MINI-PPS is a small, oil free, diaphragm pump which provides adequate capacity for the ALPHA-ARIA or the ALPHA-DUO. It is capable of pumping a half liter of leak free volume* to below 1 Torr within a few minutes, and can achieve a vacuum of 10 Torr, as is typical for Recoil Contamination Avoidance, in less than a minute. Because of its compact size, the ALPHA-MINI-PPS is an ideal companion for use with the ALPHA-DUO spectrometer when space is at a premium (e.g., in mobile labs and response vehicles). The ALPHA-MINI-PPS includes a power control cable and power supply for connection to mains. Two lengths of vacuum tubing (3-ft. and 10-inch) are provided for connection to the ALPHA-ARIA or ALPHA-DUO.

*The volumes of the ALPHA-ARIA and ALPHA-DUO are approximately 0.25 and 0.50 liters respectively.

  • Literature +

  • Specifications +

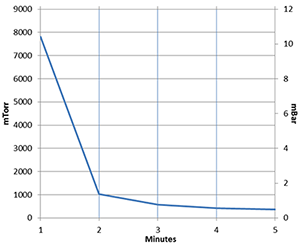

    Alpha-Mini Portable Vacuum Pump Station pump rate chartPUMP
    Ultimate Pressure
    		 ≤2.0 millibar
    Nominal Pumping Speed 6 liter per minute
    Input Voltage
    		 24 V DC, ±10%
    Motor Rating Max 17.2 W
    Current Max
    		 0.72 A
    Sound Pressure Level 45 dB(A)
    Ambient Temperature
    		 5–40°C
    Weight 1.8 kg (4 lbs.).
    Dimensions
    		 180 mm x 106 mm x 99.5 mm (7.1 in. x 4.2 in. x 3.9 in.)

    Alpha-Mini Portable Vacuum Pump Station witih Power SupplyPOWER SUPPLY
    Output Voltage
    		 24 V DC, ±2%
    Output Current 4.6 A
    Ambient Temperature
    		 5–50°C
    Weight 0.7 kg (1.5 lbs.)
    Dimensions
    		 169 mm x 142 mm x 56.6 mm (6.7 ins. x 5.6 ins. x 2.2 ins.)
    Mains Power Required 115–230 V (–20 +15) V AC, 50/60 Hz

    MAINTENANCE
    The diaphragms should be changed with every 12,000 hours of operation.

  • Ordering Information +


    Model Description
    ALPHA-MINI-PPS Miniature Diaphragm Pump. Includes power supply, power control cable, and vacuum tubes [25.4 cm (10 in.) and 0.9 m (3 ft.)]
    ALPHA-MINI-PPS-REPKIT Maintenance Overhaul Kit. Includes replacement diaphragm and parts for ALPHA-MINI-PPS.
