Detective DX1 Next Generation, Ultra High Resolution HPGe Radioisotope Identification Device

DX1Experience the future of radioisotope identification with ORTEC’s new Detective DX1 — the next-generation High-Purity Germanium (HPGe) Radioisotope Identification Device (RIID) that sets a new standard in performance, ergonomics, and cybersecurity. Building upon the trusted legacy of the Detective-X, the DX1 combines familiar reliability with enhanced features to meet the evolving demands of today’s field professionals.

Detection and Identification Features
  • Improved detector resolution
  • Comprehensive library of over 175 radionuclides including new radiopharmaceuticals
  • Unparalleled accuracy in identifying potential threats in the field
User Experience Improvements
  • 5-inch capacitive touchscreen with improved responsiveness and brightness
  • Modernized, intuitive user interface inspired by the simplicity of the RadEAGLET-R
  • Ergonomic improvement with better weight distribution
 Technology Advancements
  • Built-in WLAN (802.11 b/g/n), Bluetooth 5.1, and 10/100/1000M Ethernet
  • Supports both GPS and Galileo constellations
  • Modern cybersecurity capabilities including secure boot, built-in firewall, and in-depth static code vulnerability analysis.
  • Uninterrupted operation, allowing the DX1 to be turned off or on at any point during the detector cool-down or warm-up cycle without risk

  • Literature +


    Detective DX1 Brochure

    DX1 Manual

  • Nuclide Library +


    The Detective DX1 has a very comprehensive nuclide list. A subset of the entire nuclide library is the default “Threat Isotopes”; these are marked in RED. The advanced user is able to add any of the nuclides marked in GREEN to the list of red-marked threat isotopes. The color coding in the table shows the default background screen colors and visual alarms the instrument will present when these nuclides are encountered.

    2235 keV Peak Present
    Am-241
    Am-241 (shielded)
    Am-241 (unshielded)
    Neutrons
    Cf-252/Cf-249
    Enriched Uranium
    Geiger Muller CR
    HEU
    Neutrons
    Neutrons on Al
    Neutrons on Boron
    Neutrons on Fe
    Neutrons on Hydrogen
    Neutrons on Pb
    Neutrons or H.E. Gammas
    Np-237
    Pu-238
    Pu-239
    Radiation Detected
    U-232
    U-233
    U-235
    U-238
    Unknown Peak
    Unknown/Beta Emitter
    1001 keV Peak Present
    186 keV Peak Present
    2614 keV Peak Present
    356 keV Peak Present
    375/414 keV Peak Present
    662/722 keV Peak Present
    Ac-225
    Ac-227
    Ag-110m
    Ar-41
    As-72
    As-74
    At-211
    Au-198
    Ba-133
    Ba-140
    Be-7
    Beta Emitter
    Bi-207
    Bi-212 (Th232/U232 daughter)
    Bi-214 (Ra226 daughter)
    Br-76
    Br-76 (shielded)
    Br-76 (heavily shielded)
    Br-77
    Ca-47
    Cd-109
    Cd-115
    Ce-139
    Ce-141
    Ce-144
    Cm-242
    Cm-243
    Cm-244
    Co-56
    Co-56 (shielded)
    		 Co-55
    Co-57
    Co-57 (shielded)
    Co-58
    Co-60
    Cr-51
    Cs-131
    Cs-134
    Cs-137
    Cu-64
    Cu-67/Ga-67
    Eu-152
    Eu-154
    Eu-155
    Eu-156
    Fe-18
    Fe-59
    Ga-64
    Ga-64 (shielded)
    Ga-67
    Ga-67 (shielded)
    Ge-68/Ga-68
    Gd-153
    Gd-159
    Hf-181
    Hg-203
    Ho-166m
    Ho-166m (shielded)
    Ho-166
    I-123
    I-123 (shielded)
    I-124
    I-125
    I-126
    I-126 (shielded)
    I-131
    I-131 (shielded)
    I-132
    I-133
    I-134
    I-135
    In-111
    Ir-192
    Ir-192 (shielded)
    Ir-194 (shielded)
    K-40
    Kr-87
    Kr-88
    Kr-88 (shielded)
    La-138
    La-140
    Lu-172
    Lu-176
    Lu-177
    Lu-177m
    Mn-52
    Mn-54
    Mn-56
    Mo-99
    Na-22
    Na-24
    		 Nb-92
    N    b-94
    Nb-95
    Nb-96
    Nb-96 (shielded)
    Nd-147
    Os-194/Ir-194
    Pa-231
    Pb-203
    Pd-103
    Po-210
    Pr-144
    Ra-223
    Ra-226
    Rb-83
    Rb-86
    Rh-105
    Ru-97
    Ru-103
    Ru-106/Rh-106
    Sb-124
    Sb-124 (shielded)
    Sb-125
    Sb-127
    Sc-46
    Se-75
    Sm-153
    Sm-153 (shielded)
    Sn-113
    Sr-82/Rb-82
    Sr-85
    Sr-85/Kr-85
    Sr-89
    Suspect Neutrons
    Ta-182
    Tc-96
    Tc-99m
    Te-132
    Tl-201
    Tl-200
    Tl-202
    Tl-204
    Th-229
    Th-230
    Th-232
    Tm-170
    Tm-171
    V-48
    W-187
    W-188/Re-188
    Xe-127
    Xe-131m
    Xe-133
    Xe-133m
    Xe-135
    Y-88
    Y-91
    Yb-169
    Zn-65
    Zn-62
    Zr-95

  • Sleuth Mode Interface +

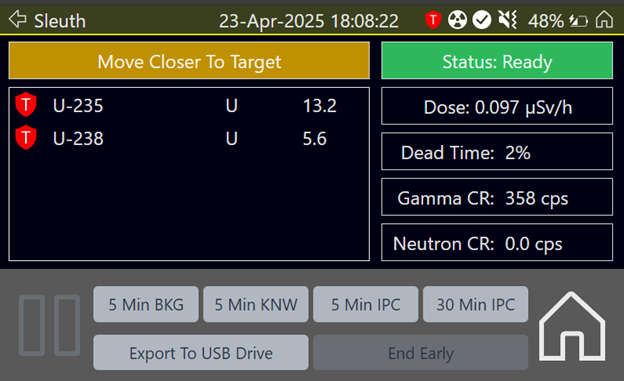

    The new Sleuth App has the same functionality as the Detective-X Sleuth interface, with improvements to the UI afforded by the new OS and SW platform. Users familiar with the Detective-X version of Sleuth will have an easy transition to the new DX1 app.

    Sleuth Mode user interface is a simple and easy-to-use. It is designed for users who may use the instrument infrequently and need to take quick Nuclide ID measurement and provide data to reachback organizations

    The Sleuth App features:

    • A Simplified User Screen for users who are not experts in gamma spectroscopy.
    • The ability to stop or pause a count and restart that count.
    • Prompts to assist the user in determining the optimal distance to the Item of Primary Concern (IPC) for measurement.
    • Simple touch screen buttons for ease of use.
    Sleuth Mode is easy to learn, and simple to use, for users such as state and local law enforcement who may not use this type of instrumentation every day.

    Sleuth minimizes the opportunity for errors in situations where operators must multi-task to quickly and accurately assess the threat level posed by an item of primary concern (IPC).

    Because of its limited user interface, Sleuth can greatly simplify training protocols for operators as well.    		 DX1 1
    DX1 2
    DX1 3

  • RAPiD App +


    The new DX1 RAPiD App has the same functionality as the Detective-X RAPiD interface, with improvements to the UI afforded by the new OS and SW platform. Users familiar with the Detective-X will have an easy transition to the new DX1 app.



    The RAPiD (Radiological Assistance Program iDentification) application is designed to meet specific customer needs to streamline data collection while minimizing pesky alarm notifications.


    RAPiD Features Include:

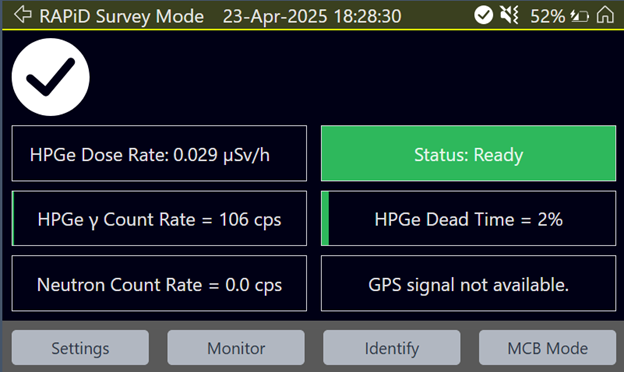

    • Survey Mode screen provides an accessible view of the count rate, status, deadtime, and GPS location.

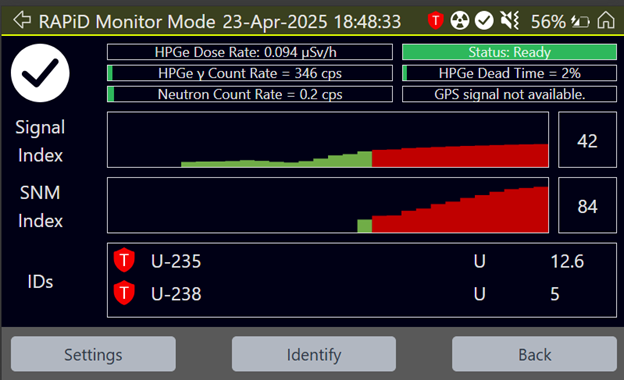

    • Monitor Mode screen offers easily viewable count rates, dead time readings, and GPS coordinates.

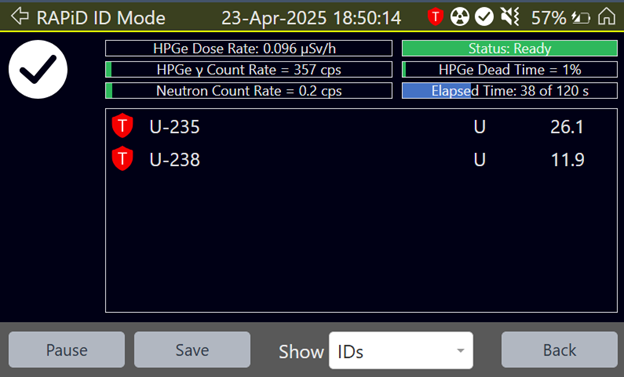

    • ID Mode screen displays the elapsed count time.
    • Continue data collection after the identification preset time has been reached.
    • Completely pause data collection.
    • Exit ID Mode without saving the results at the end of the measurement if desired.
    • Choose local time instead of Zulu or CMT time.
    • Recall a spectrum stored in the instrument and look at the details (including viewing the actual spectra).

    		  DX1 4
    DX1 5
    DX1 6

  • Calibration Service +


    Certified dose rate calibration service. ORTEC provides a NIST traceable Calibration Certification with the measurements all within ±10% for ten dose rates from .01 mR/hr to 2000 mR/hr. The total measurement uncertainty with all systematic sources of error included is less than ±20%. A certified Calibration Certificate is provided. The dose rate calibration is warranted for one year.

    Ordering Information: Order model DX1-DOSE-CALIB

  • Learning Center +


    The Germanium Advantage

  • Ordering Information +


    DX1

    Next Generation 3 MeV Portable High Efficiency HPGe Identifier

    DX1-N

    Next Generation 3 MeV Portable High Efficiency HPGe Identifier with Neutron Detector

    DX1-8

    Next Generation 8 MeV Portable High Efficiency HPGe Identifier

    DX1-8-N

    Next Generation 8 MeV Portable High Efficiency HPGe Identifier with Neutron Detector

    DX1-ACC-2590-CABLE

    Battery Cable from Military 2590 Battery

    DX1-ACC-BAT

    Lithium-Ion Battery

    DX1-ACC-COL-ST

    Steel Collimator 4mm Thick

    DX1-ACC-COL-W

    Tungsten Collimator 4mm Thick

    DX1-ACC-DUAL-CHGR

    Standalone Dual Battery Charger and Calibrator

    DX1-ACC-MANUAL

    User’s Manual

    DX1-ACC-PS

    Universal AC Mains Power

    DX1-ACC-RCFILTER

    Low Energy Gamma Filter

    DX1-ACC-TH-CAL

    Thoriated Tungsten Electrodes

    DX1-ACC-TRANSPORTCASE

    Wheeled Transport Case

    DX1-ACC-USBFLASH

    USB Mini Flash Drive

    DX1-ACC-VEHCHGR

    Vehicle Power Adapter Cable

    DX1-ACC-SHOULDER-STRAP

    Shoulder Strap with Stylus and Retractable Cord

    DX1-ACC-RESERVE-COVER

    Connector Dustcap 12mm

    DX1-ACC-STYLUS

    Stylus

    DX1-ACC-NEUTRON DETECTOR

    Neutron Detector

    DX1-ACC-TRIPOD

    Variable Length Tripod

    DX1-ACC-MOUNT-BRKT

    Vertical Mounting Bracket for Tripod

    DX1-ACC-TRIPOD-WITH-BRKT

    Variable Length Tripod with Vertical Mounting Bracket

    DX1-ACC-EXT-BATT

    External Military 2590 Battery, Charger and Cable

    DX1-OPT-RFSECURE

    Removal of WiFi, Bluetooth, and GPS signal capability from DX1

    DX1-ACC-SCREEN-PROTECT

    Replacement Screen Protector
