RADEAGLE-Cx Highly Sensitive, Adaptable Detection Units for a Variety of Radiation Detection and Identification Applications

Versatility
Interactive or Independent Operations: The RECx can function as interactive systems with active user participation (such as backpacks, vehicle systems, airborne systems, pop-up portals), or as standalone systems that are permanently installed and connected through the Industrial Internet of Things (IIoT).
Adaptable Gamma and Neutron Detection: The RECx is versatile in meeting your application’s sensitivity needs with three different sizes of gamma detectors available. Furthermore, the optional LiZnS neutron detector provides outstanding neutron detection performance without the need for 3He.

Innovative Isotope ID Algorithm for Exceptional Real-World Performance
Next-Generation Identification: The RECx utilizes innoRIID’s thoroughly tested, reliable, and groundbreaking isotope identification algorithm. Instead of depending solely on template matching like many other systems, our strategy integrates template matching, peak search, and multi-agent analysis. This sturdy technique minimizes false alarms while precisely identifying radionuclides of interest, even in complex real-world situations involving masked and shielded sources.

Modular and Interconnected with IIoT Capabilities
Multiple RECx modules can be interconnected to build larger, integrated measurement setups that are controlled and monitored via the on-board web interface. Additionally, RECx units are compatible with Industrial Internet of Things (IIoT) standards, so networked units (RJ-45, Wi-Fi) are fully interoperable and can send semantic identification information to become virtually integrated into any existing IT infrastructure. The RECx supports Message Queue Telemetry Transport (MQTT) data streaming, provides an interactive REST API to retrieve data, and has a classical serial output port. Autonomous units are set to be always on when power is present and will re-start and resume function after a loss of power (the RECx also has batteries on-board in case of outages).

Rugged and Lightweight Design
The RECx module enclosure combines aluminum and carbon fiber, delivering durability without compromising portability. Shock absorbent material is employed to protect sensitive internal components.

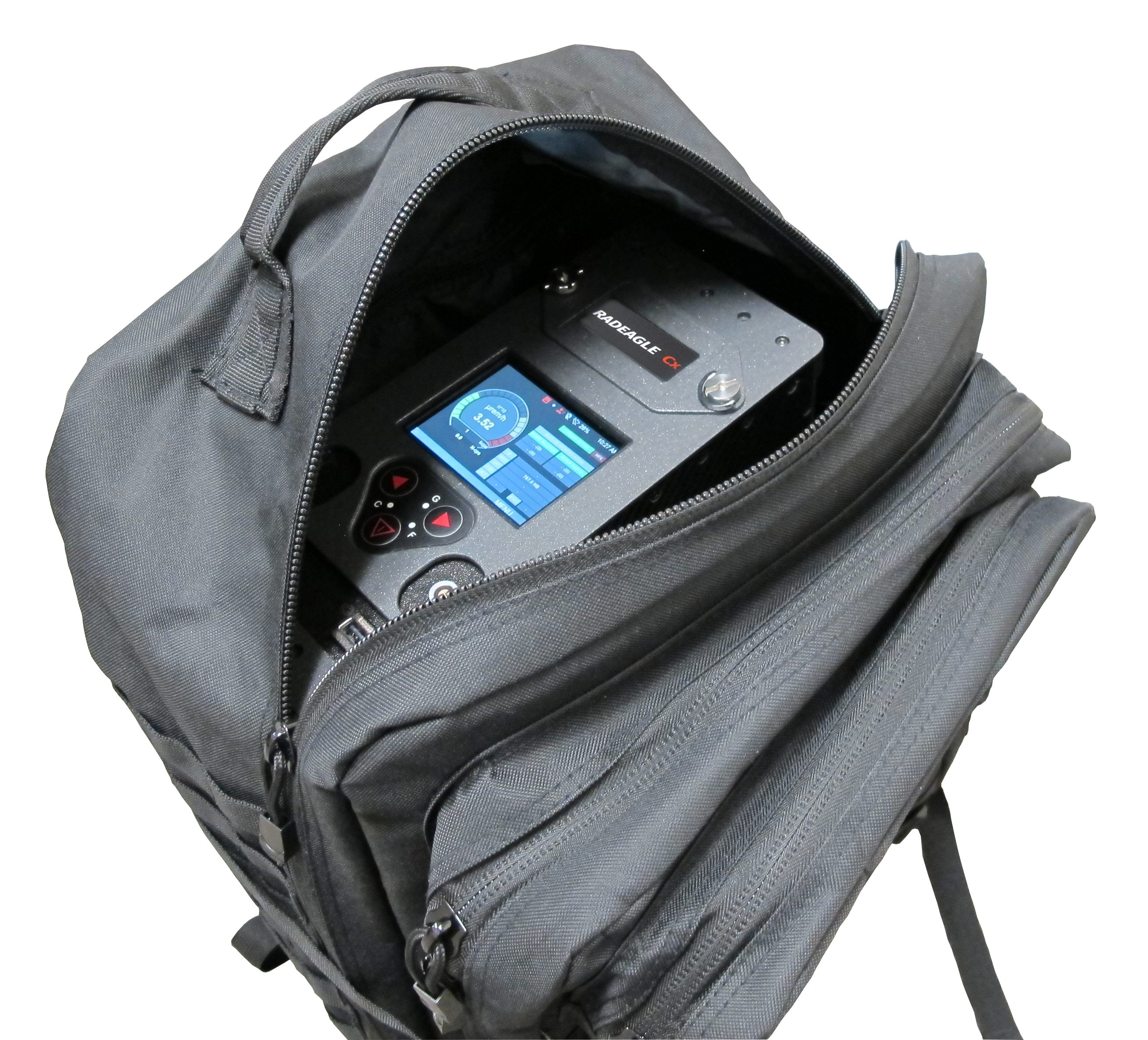

The RECx-BP is optimized for use in a wearable configuration that provides exceptional radioisotope detection and identification performance in a discreet, ergonomic military-grade backpack. The RECx-BP includes all the functionality of the standard RECx units and even works with augmented reality glasses with ActiveLook® technology to provide key information to the user without sacrificing situational awareness. Furthermore, the RECx-BP includes mapping software that provides a radiation “heatmap” along with isotope ID information.

RECx Backpack Key Features:

• Available with either a 2” x 4” x 4” or 2” x 4” x 8” gamma detector, and with or without a LiZnS neutron detectors.
• Proprietary ID algorithms provide fast, accurate identification and classification.
• Intuitive RADsync Apple and Android apps along with a web-based interface facilitate ease of use
• Discreet, ergonomic backpack provides comfortable operation even over the longest missions.
• Hot-Swappable batteries allow continuous operation.
• Integrated GPS mapping software allows “breadcrumb” tracking and locations of potential threats.
• Multiple APIs facilitate sharing information: REST, MQTT, MFK, SIGMA (Q3-24).
• Can interface with augmented reality glasses via RADsync app to maximize the operator’s situational awareness while performing discreet operations (compatible with any brand incorporating ActiveLook® technology

All models include rechargeable NiMH Battery, 100 to 240 V, 50 to 60 Hz Power Supply, 12 V Car Adapter, BlueTooth and Wi-Fi dongles, external GPS Receiver, and Operator Manual. “BP” models include military-grade backpack and spare NiMH battery. Weight ranges from 13 lbs (6 kg) to 33 lbs (15 kg).

Model	NaI(Tl) Scintillation Gamma Detector	Neutron Detector	Unit Size
RECx 4	2” x 4” x 4” (5 cm x 10 cm x 10 cm)	No	16.5” x 10.2” x 4.7” (420 mm x 260 mm x 120 mm)
RECx 4-N	2” x 4” x 4” (5 cm x 10 cm x 10 cm)	Yes	16.5” x 10.2” x 4.7” (420 mm x 260 mm x 120 mm)
RECx 4-BP	2” x 4” x 4” (5 cm x 10 cm x 10 cm)	No	16.5” x 10.2” x 4.7” (420 mm x 260 mm x 120 mm)
RECx 4-N-BP	2” x 4” x 4” (5 cm x 10 cm x 10 cm)	Yes	16.5” x 10.2” x 4.7” (420 mm x 260 mm x 120 mm)
RECx 8	2” x 4” x 8” (5 cm x 10 cm x 20 cm)	No	20.5” x 10.2” x 4.7” (520 mm x 260 mm x 120 mm)
RECx 8-N	2” x 4” x 8” (5 cm x 10 cm x 20 cm)	Yes	20.5” x 10.2” x 4.7” (520 mm x 260 mm x 120 mm)
RECx 8-BP	2” x 4” x 8” (5 cm x 10 cm x 20 cm)	No	20.5” x 10.2” x 4.7” (520 mm x 260 mm x 120 mm)
RECx 8-N-BP	2” x 4” x 8” (5 cm x 10 cm x 20 cm)	Yes	20.5” x 10.2” x 4.7” (520 mm x 260 mm x 120 mm)
RECx 16	2” x 4” x 16” (5 cm x 10 cm x 40 cm)	No	28.3” x 10.2” x 4.7” (720 mm x 260 mm x 120 mm)
RECx 16-N	2” x 4” x 16” (5 cm x 10 cm x 40 cm)	Yes	28.3” x 10.2” x 4.7” (720 mm x 260 mm x 120 mm)
